Art2Silkscreen

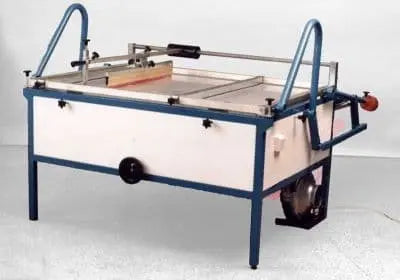

MANUAL SCREEN PRINTING FLATBED TABLE No3. With guided squeegee and vacuum.76x107cm B1 SIZE
MANUAL SCREEN PRINTING FLATBED TABLE No3. With guided squeegee and vacuum.76x107cm B1 SIZE
Regular price
£8,800.00 GBP
Regular price
Sale price
£8,800.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Manual Screen Printing Table with a one-sided guided squeegee, is intended for the printing of surface materials up to 760 x 1070 mm / 29.9inches x 42.12inches.
- Even lifting of the screen, which is closely-set in the support frame,
- Sandwich-style dural printing plate, which guarantees top-quality level, firmness and even feeding
- The plate is vertically convertible from the service place via a regulating bolt and is easily adjusted to the settings of the register.
- The support frame has conic locks, which fix the screen in the printing position.
- The table comes with a noiseless, radial air pump (58 dB), automatically regulated when lifting and folding the screen
- Has a hanging squeegee on the support bar with cross guiding; and a gripper, which guides the squeegee, ensuring steady pressure, and thereby guaranteeing quality, even printing over the entire surface, such that all copies in one job are the same without placing great demands on the machine operator.
- Flatbed 3 screen printing table is intended for the commercial printing of surface materials.
- Its surface has a high-quality finish, heavy-wear parts are made of galvanized metal.
- A quality machine that will not disappoint!
- 12 Month Back to Base Warranty.
- Please allow 6 weeks for delivery.
Technical data | Flatbed 3 | |
---|---|---|
Print Size | 760 x 1070 mm | |
Max. Screen Size | 1050 x 1490 mm | |
Vacuum Table | 1000 x1440 mm | |
Height of printed material | 0 - 80 mm | |
Sizes: | ||
Width | 1800 mm | |
Length | 1800 mm | |
Height open/closed | 1500 / 1350 mm | |
Weight | 160 kg | |
Elec. Connection | 230 V 50 Hz / 16 A |
Delivery and installation to mainland England £150 Scotland/Wales and offshore please contact for a quotation
