ORION 4/4 Floor Standing Gold Business Package
Our Gold business package range is the Ultimate setup, which includes everything to complete your screen print workshop. Also included in this package is a free delivery and installation at your location.
Orion carousel is one of the most recognizable popular models, not only due to its affordability but also its strength, accuracy and reliability. The Orion 4 Colour 4 Station Manual Floor Standing Carousel maximizes production levels in every print room. A quality, robust carousel built to last and tackle every job it undertakes. This carousel has proven its strength, consistency and endurance in many printing workshops and makes up the perfect business package when combined with the following setup.
- Perfect Business Setup Package
- Superior Print Quality
- Keep Costs Low
- Sturdy & Rigid achieve consistent prints where registration is crucial.
- High Quality Bearings that lock print heads in place.
- Small Footprint Allows for smaller spaces, workshops, garages, home - setups.
- Included in this package is a floor standing flash dryer for fast production.
- Manual Multi Station Carousel
- Dimensions: (L*W*H): 2270*2270*1050mm
- Weight 120 kg
- Printing Surface: Flat
- Average Printing Speed: 500pcs/Hour
- Maximum print size: (L*W): 400*500mm
- Print Height: 5mm
- Maximum Frame Size: 500*600mm
- Printing Boards Aluminium A3 x 4
- Print onto a variety of products: T - shirts, Clothing, Fabrics, Towel, Leather , bags, backpacks, card, paper, wood and other flat products
- The printing base can be rotated and the screen plate can turn backwards and forwards, left and right, which makes operation easier and positioning more accurate.
- Frames can be accurately set to the correct position by turning screws on the print head micro adjustment.
- Head comes assembled ready to attach to the base.
- Location lock that helps lock the arm in place whilst in the printing position.
- All tubular steel construction.
- Adjustable screen tension hold down.

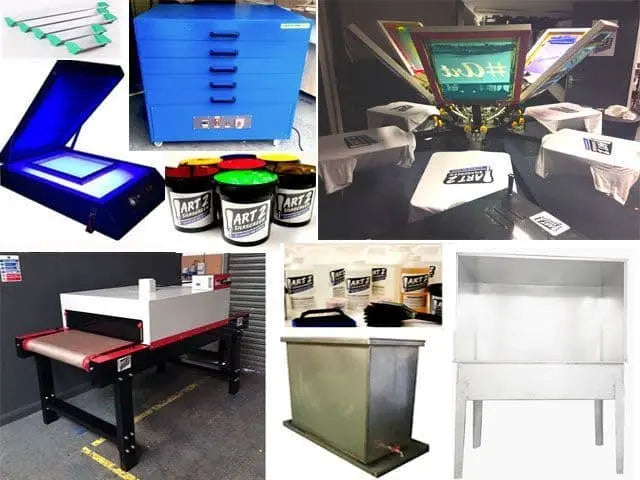

Package Includes:
Machinery:
- Orion 4 Colour 4 station Carousel with A3 platen boards
- 1 x UV Vacuum Exposure Unit 25" x 35"
- 1 x Drying Cabinet
- 1 x Stainless Steel Washout Booth - Model Large
- 1 x Stainless Steel Dip Tank
- 1 X Tunnel Dryer
- 1 x Flash Dryer 18"x24"
- 1 x Heat Press 40x50cm
- 1 x Infrared Digital Laser Thermometer
Consumables / Tools:
- 20x Aluminium Screens 43T 20x24 (you choose mesh counts)
- 20x Aluminium Screens 43T 16"X20" (you can choose mesh counts)
- 20x Aluminium Screens 43T 23"X31" (You can choose mesh counts)
- 1 x 18" Aluminium Coating Trough with ends
- 1 x 15" Aluminium Coating Trough with ends
- 1 x 12" Aluminium Coating Trough with ends
- 1 x 8" Aluminium Coating Trough with ends
- 4 x 18" Aluminium Squeegees with blade
- 4 x 15" Aluminium Squeegees with blade
- 4 x 12" Aluminium Squeegees with blade
- 4 x 8" Aluminium Squeegees with blade
- 100 x A3 transparency Film for making your film positives
- 100 x A4 transparency Film
- 100 x A3 Sheets of Transfer Paper
- 6 Roll of masking tape
- 6 x Quality Wooden Spatulas with Stainless Steel Blade.
-
Emulsions / Inks:
- 2 x 5 Kilos of 2-Part Emulsion
- 5 Litre Screen Filler
- 1 Litre Transfer Adhesive Powder
- 5 x 5 Litre of Ink (choose either Waterbased, Plastisol or Hybrid Ink kg).
-
Opaque White
Black
Blue
Yellow
Red
Cleaning Products: / Chemicals: - 5 Litre Concentrated Stencil Strip
- 5 Litre Concentrated Degreaser
- 5 Litres High Strength Screenwash
- 1 Litre Max Strength Ghost Remover
- 6 Cans of Spray Adhesive
- Cleaning Brush - Short Handle
- Cleaning Brush - Long Handle
- Scrub Pad
-
FREE Delivery and installation to mainland UK Destinations.
PLEASE NOTE WE CAN ONLY ACCEPT PAYMENT BY BANK TRANSFER FOR THIS ITEM.
